Quality Products to Help You Complete Your Mission.
We have the experience and know how to design and install all your equipment and service needs.
Our innovative medical interiors are designed to optimize patient care needs. Each airframe presents challenges that only experience and know how can mitigate to provide the best care possible. We have STC’ d solutions for just about any airframe popular in the aeromedical industry. Whether you provide basic emergency single patient care or advanced critical care or dual patient transport, we have a FAA / EASA certified solution in place.

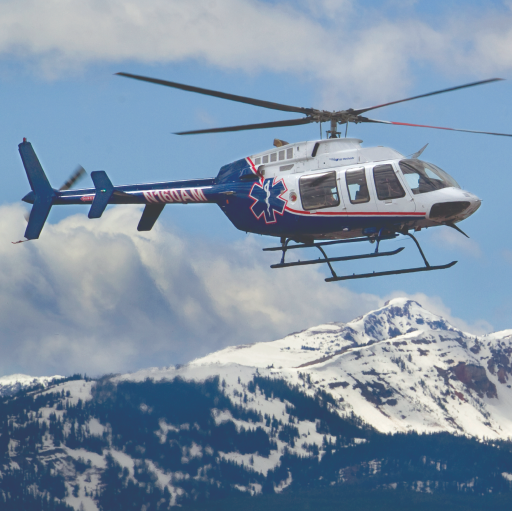

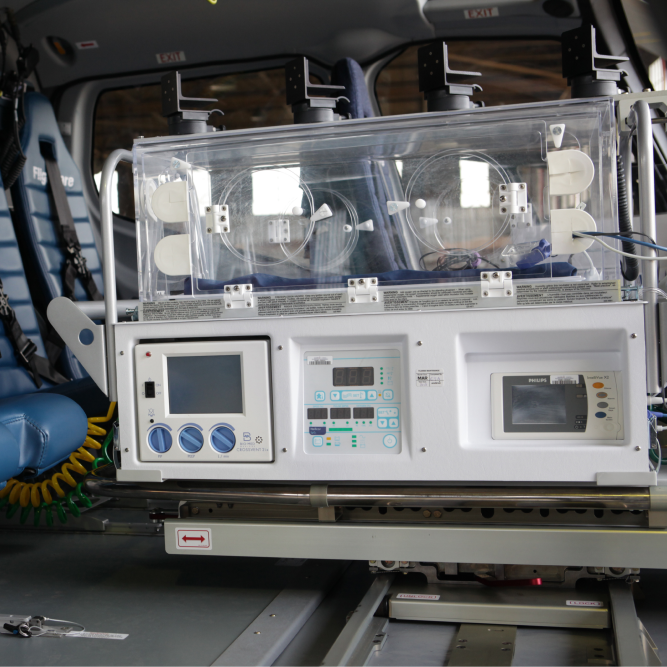

The United Rotorcraft B407 medical interior can accommodate a single patient or specialty transport including isolette and intra-aortic balloon pump.
Patient Loading System

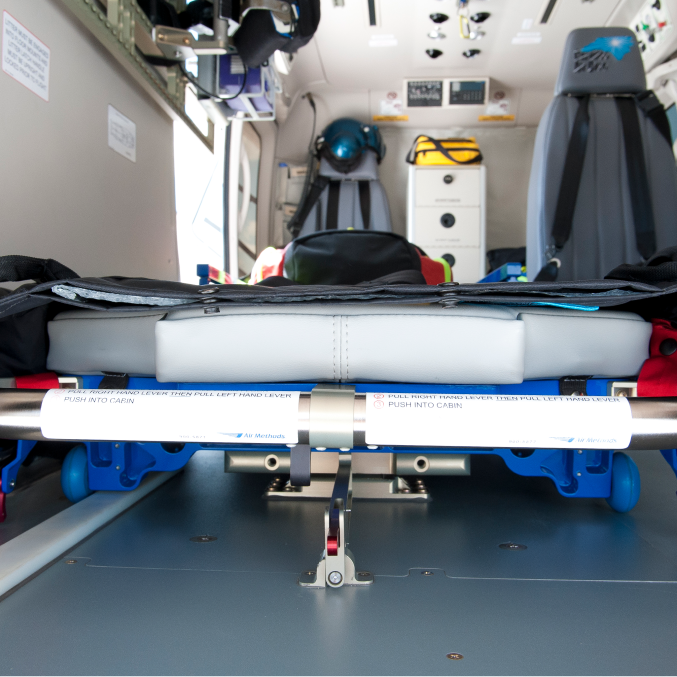

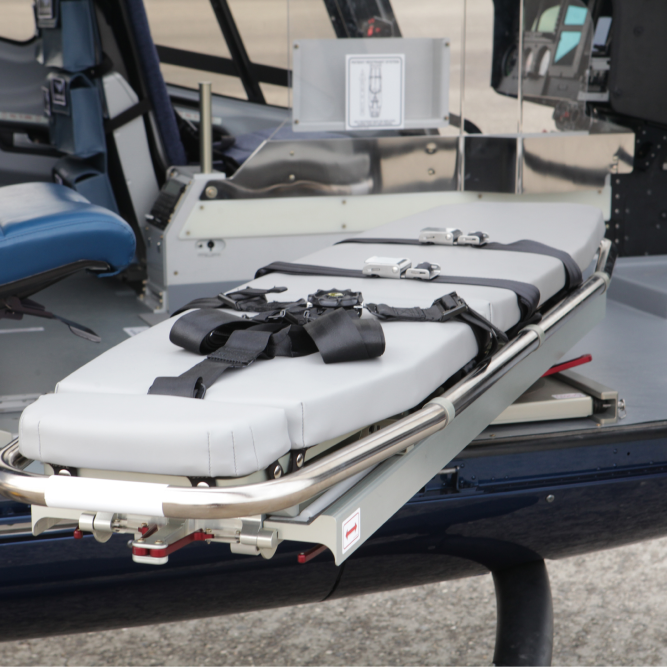

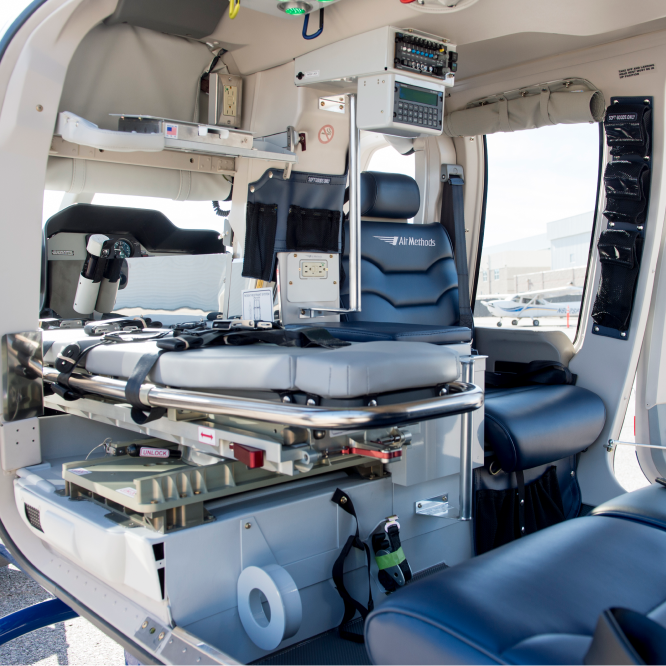

The United Rotorcraft Bell 407 medical interior comes standard with the Articulating Litter Loading System (ALLS). Located on the left side of the aircraft, its positioned to allow the primary caregiver to be seated at the patient’s head. The patient loading system swivels out the left-hand passenger door of the aircraft to simplify loading.
Medical Crew Seating

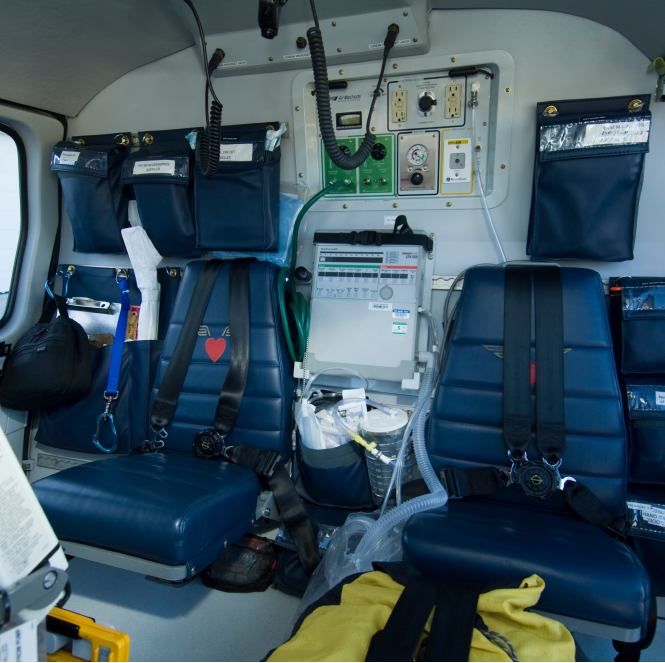

The Bell 407 medical interior has four medical seats and each is equipped with a three-point harness.

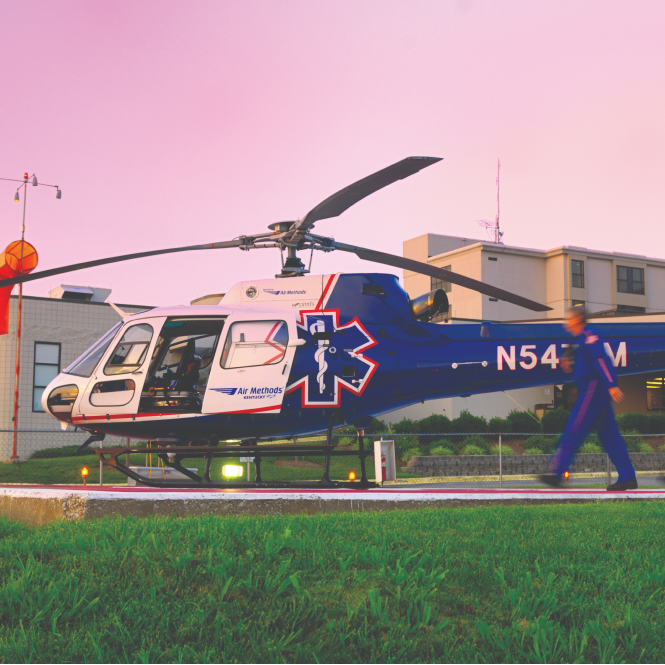

The United Rotorcraft H125 medical interior can accommodate a single patient transport or specialty transport including isolette and intra-aortic balloon pump.
The United Rotorcraft H125 medical interior comes standard with the Articulating Litter Loading System (ALLS). Located on the left side of the aircraft, it is positioned to allow the primary caregiver to be seated at the patient’s head. The patient loading system can swivel out the left-hand passenger door of the aircraft to simplify loading.
Three aft wall mounted medical seats fold up to increase available cabin space and are quickly removable without tools. The seats move laterally on track allowing medical crews to adjust them to accommodate equipment for specialty transports.

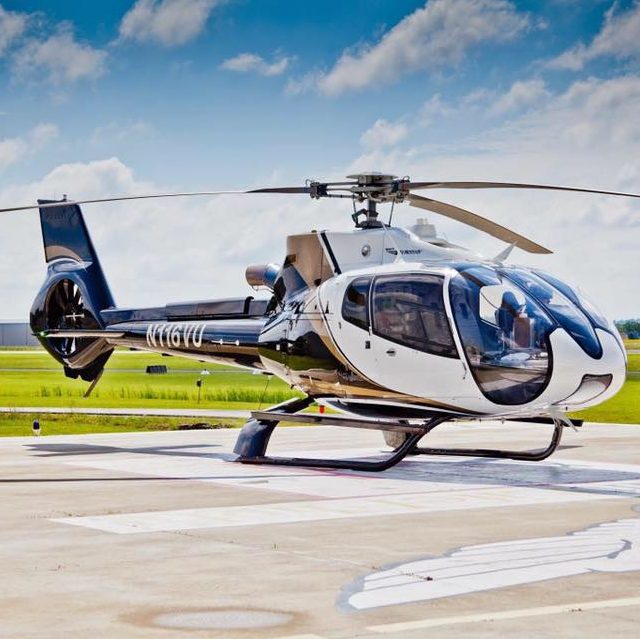

The United Rotorcraft H130 medical interior can accommodate a single patient transport or specialty transport including isolette and intra-aortic balloon pump.p.

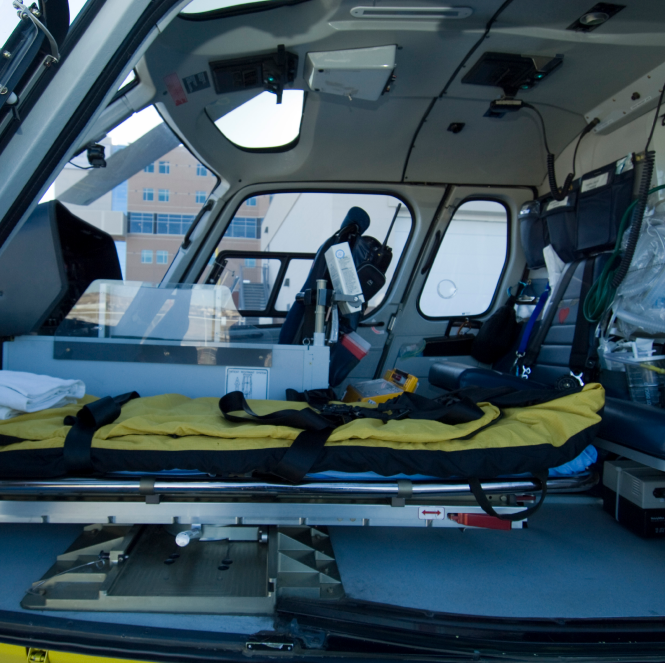

The United Rotorcraft H130 medical interior utilizes the highly versatile Lowered Patient Loading System. The loading system is located on the right side of the aircraft and positioned to allow the primary caregiver to be seated at the patient’s head. The LPLS swivels out the right-hand passenger door of the aircraft to simplify loading.
Three crash attenuating medical seats are included but can be quickly removed without tools or moved forward on the track to increase patient care and accommodate specialty equipment.

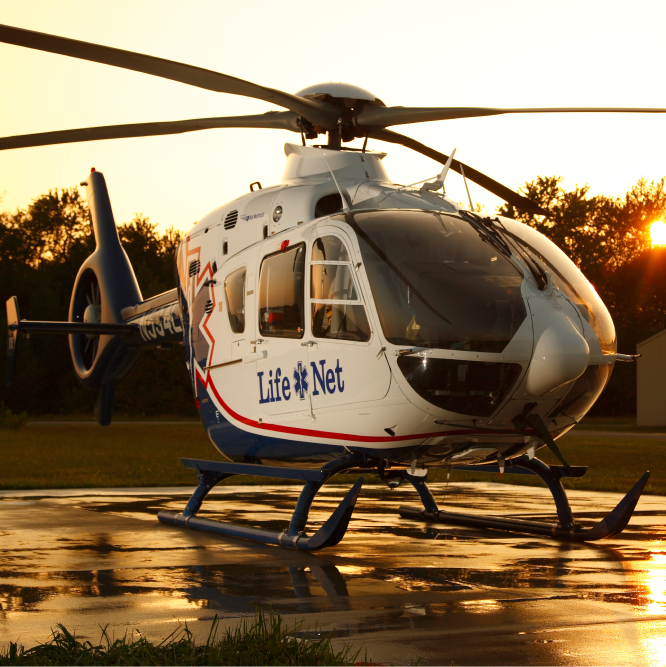

The United Rotorcraft H135 medical interior can accommodate a single, dual, or specialty transport such as intra-aortic balloon pump or ventricular assist device.

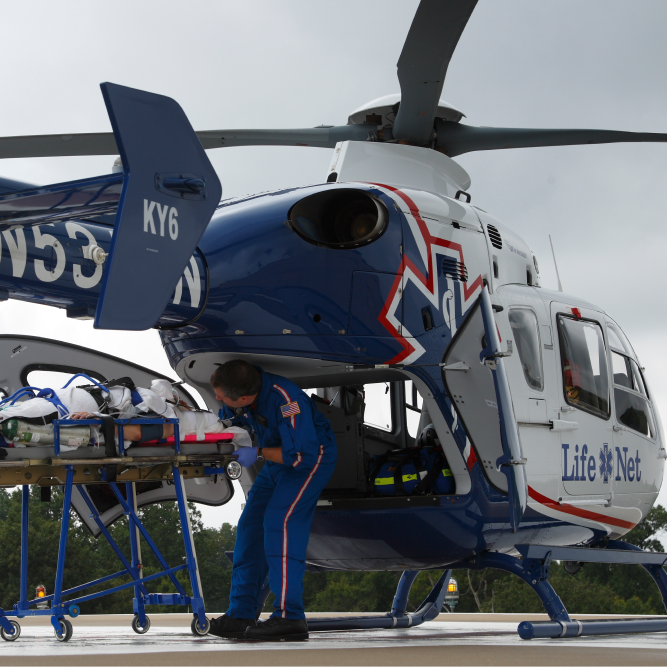

With the United Rotorcraft H135 medical interior there are two patient loading system options – the Roll-On Fold-Up Litter System (pictured) and United Rotorcraft wheeled litter.

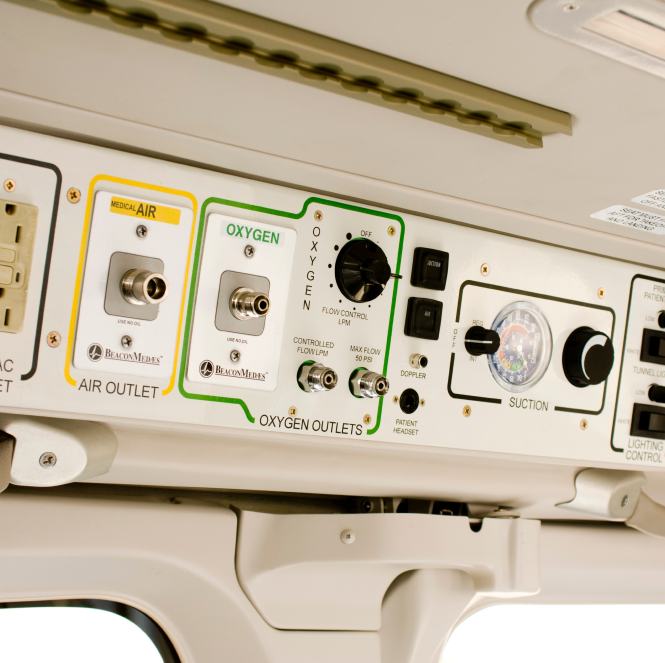

The medical panels are mounted next to the primary and secondary patient areas and supply power, oxygen, air, and suction. A versatile medical equipment wall is standard and spans the width of the medical cabin providing easily accessible mount locations for medical equipment. A variety of modular, quick-disconnect equipment mounts for most medical equipment are available.

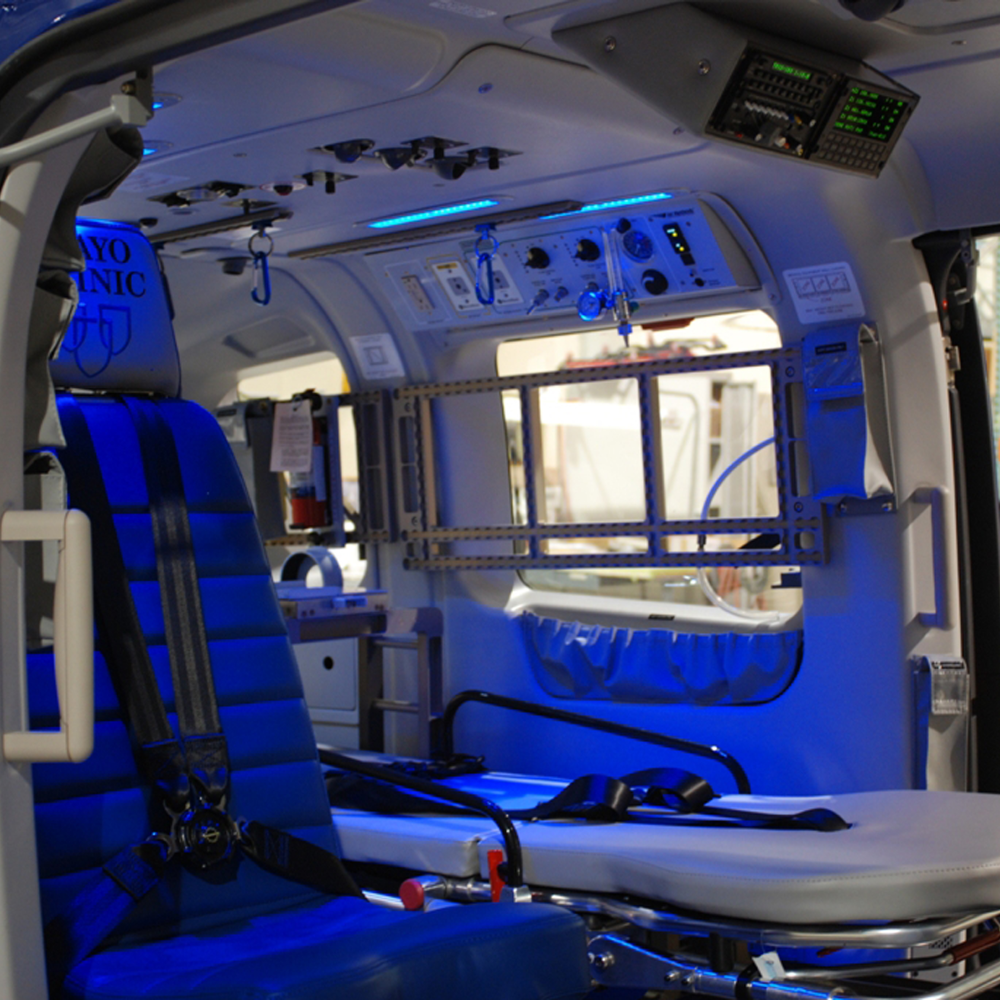

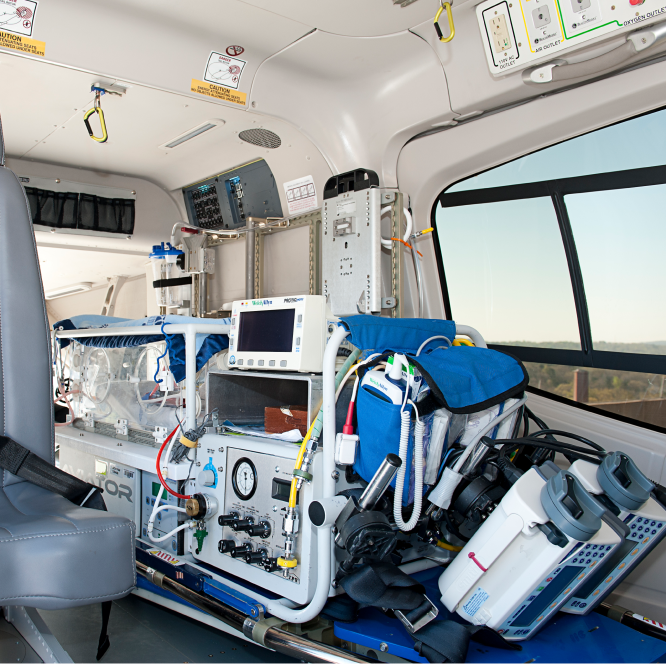

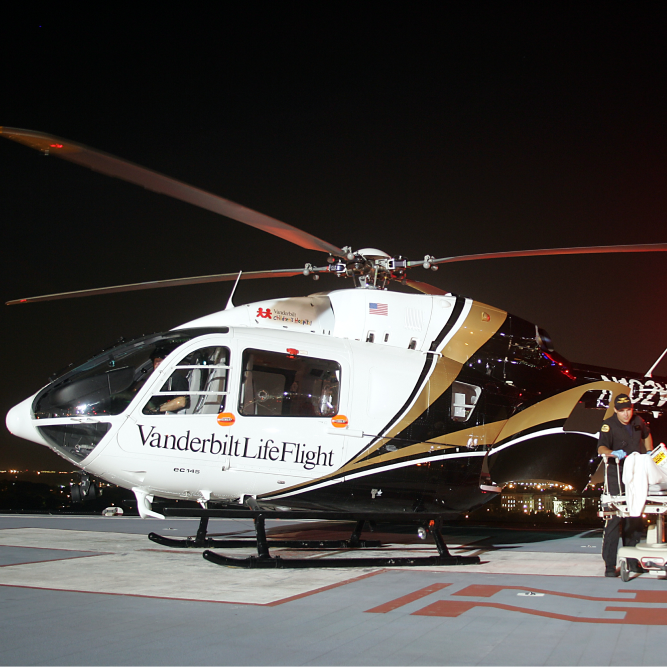

The United Rotorcraft EC145 medical interior can accommodate a single, dual, or specialty transport such as isolette, intra-aortic balloon pump, and ventricular assist device.

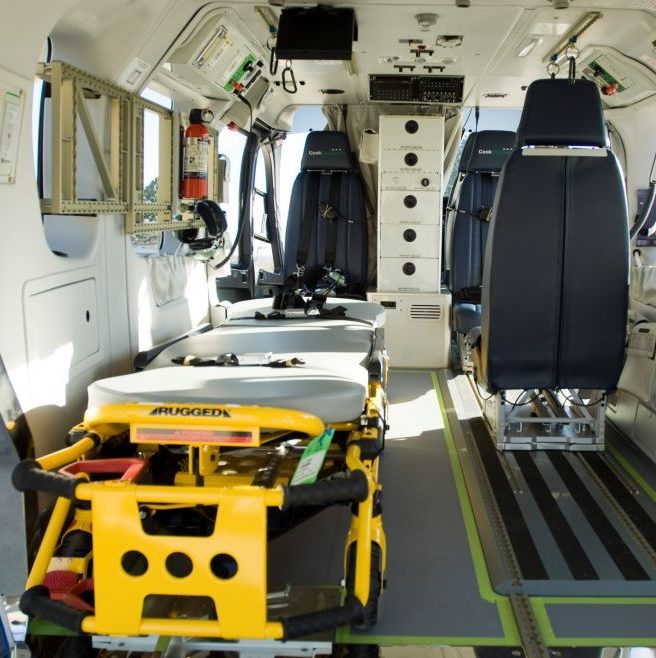

Customers have multiple patient loading system options: the Translating Patient Loading System (TPLS), Roll-On Fold-Up, Stryker MX (pictured), and Ferno 93 litter systems.
The medical panels are mounted above the primary and secondary patient and aft loading areas that supply power, oxygen, air, and suction.
Overhead Overhead Ceiling Panel/ Medical Lighting
Custom overhead ceiling panels maximize crew headroom and include IV hook tracks and medical interior LED lighting controls. The lighting options include white and blue night-vision goggle compatible modes.
The United Rotorcraft Bell 429 medical interior can accommodate a single, dual, or specialty transport such as isolette, intra-aortic balloon pump, and ventricular assist device.
The Translating Patient Loading System (TPLS) is located on the left or right-hand side of the aircraft and is attached to rails that run the length of the cabin floor. This allows the system to load a patient from either side or through the aft door of the aircraft. The TPLS accommodates an Air Methods patient litter which is secured with a single latch. Our Roll-On Fold-Up Litter System is available and loads through the aft clamshell doors. The loading ramps allow litter loading while minimizing back strain. United Rotorcraft offers a (left hand install) Roll-On Fold-Up Litter System and a Ferno 28 (right-hand install).
Oxygen System
The liquid oxygen system is installed in the base cabinet of the forward storage unit. The gaseous oxygen system is installed between the pilot seat and aft-facing crew seat.
